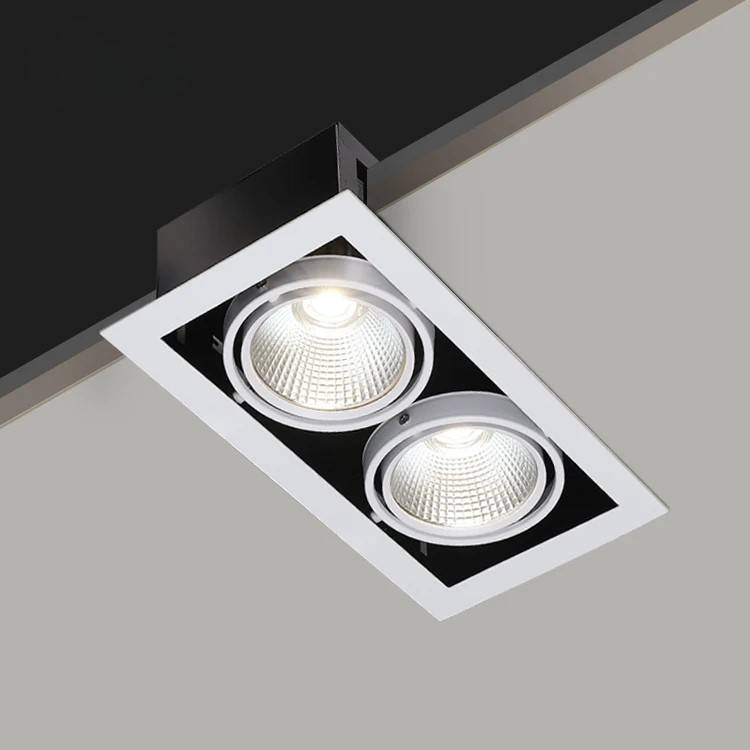

ILL-GDL48-XX
Key Features
Energy Efficient
Long Lifespan
Eco-Friendly
Low Heat Emission
Multiple CCT Options
Eye Comfort
Low Maintenance
Premium Quality
Instant ON
Easy Installation
Specifications
Model No.
ILL-GDL48-XX
Product Family
Grille Downlights
Application Area
Indoor
Material and Finish (Body)
Die cast Aluminum
Material and Finish (Reflector)
White/Black/Gold/Gray
IP Level
IP20/IP44
Working Temperature
-20°C~50°C
Working Hours
50000 Hrs
Input voltage
120-270 VAC, 50/60 Hz
Power
12W,20W,36W,48W
Power factor
>0.9
Control Type
On/Off, Dimmable
Light Source
LED
Colour Temperature (CCT)
2700K,3000K,4000K,6500K
Colour Rendering Index (CRI)
>80,>90
Unified Glare Rating (UGR)
<22
Beam Angle
15°, 24°, 38°
Luminous output
100lm/W (±5%)
IK Rating
IK6
