ILL-SDL10

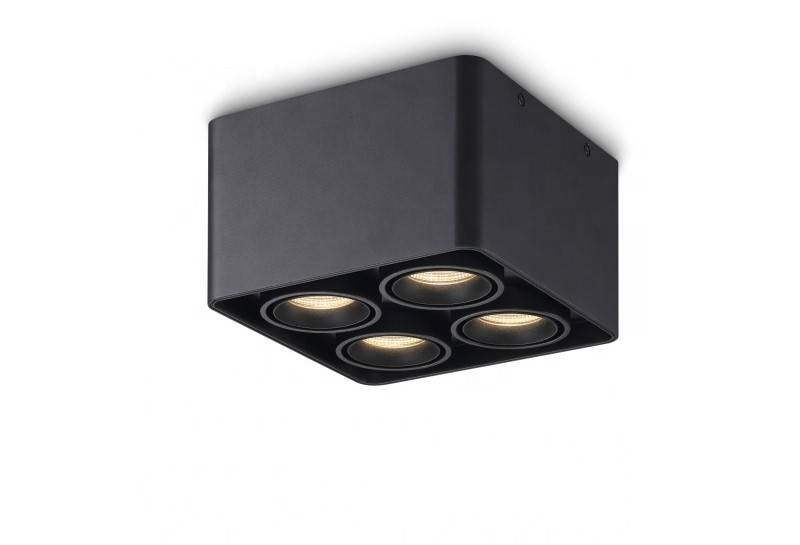

The ILL-SDL0XX10 is a premium surface-mounted LED downlight featuring a sleek square housing with four high-efficiency LED modules for powerful, uniform illumination. Designed with a modern minimalist aesthetic, superior thermal management, and low-glare optics, it delivers excellent energy efficiency and long-lasting performance. Available in black and white finishes, it is ideal for hotels, luxury residences, offices, retail stores, showrooms, restaurants, and other contemporary commercial and residential interiors.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-SDL0XX10

Product Family

Surface Mount Down Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

5W,7W,10W,15W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

15°, 24°,38°

Luminous output

120lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
