ILL-SDL16

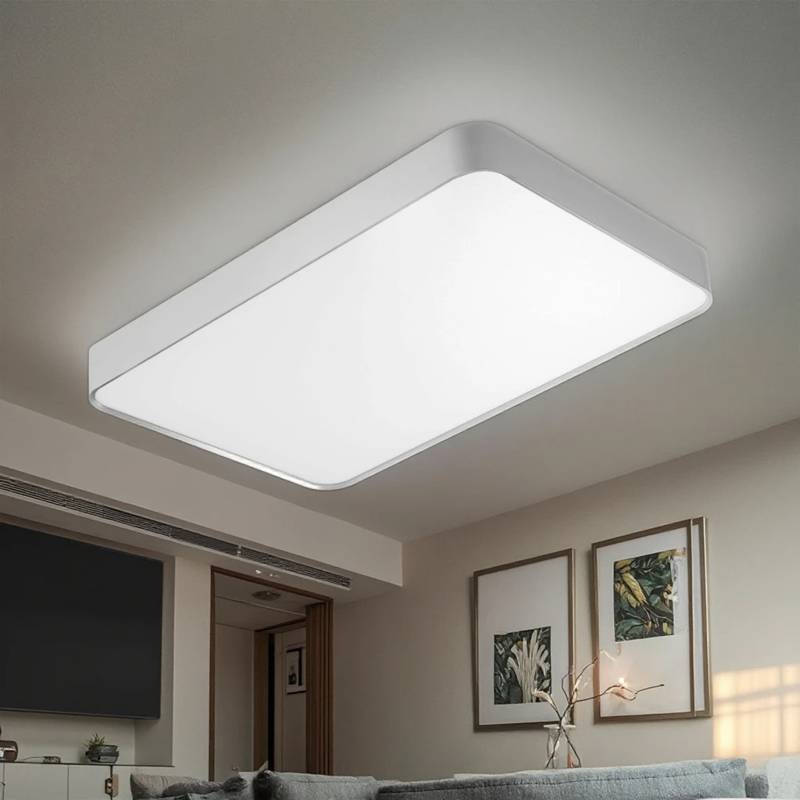

The ILL-SDL0XX16 is a premium surface-mounted LED ceiling light featuring a slim rectangular design for modern architectural lighting. Engineered with high-efficiency LED technology, a durable aluminum housing, and an opal diffuser, it delivers uniform, glare-free illumination with excellent energy efficiency and long-lasting performance. Ideal for offices, hotels, corridors, meeting rooms, retail spaces, and other contemporary residential and commercial interiors.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-SDL0XX16

Product Family

Surface Mount Down Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

40W,60W,90W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

110°

Luminous output

110lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
