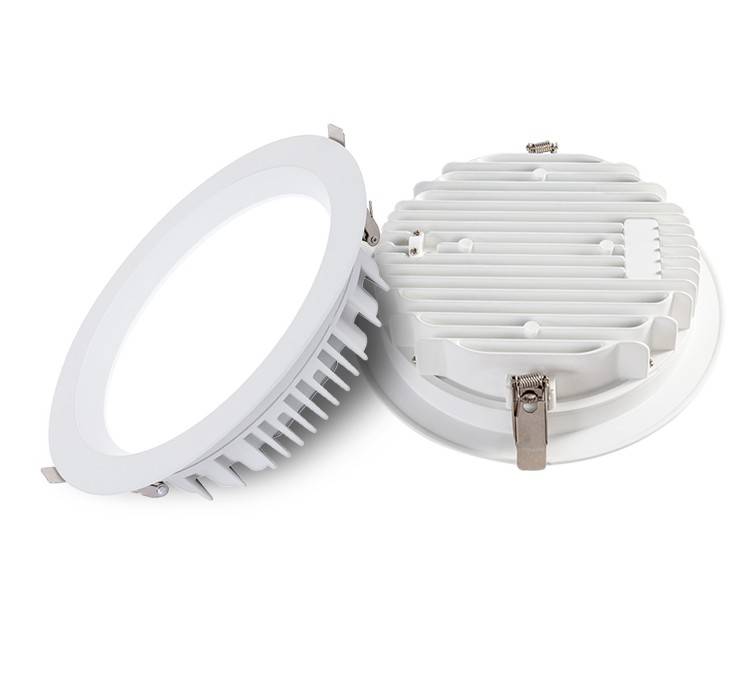

ILL-DL02

The ILL-DL0XX02 Series is a high-performance recessed LED downlight designed for modern architectural and commercial lighting applications. Featuring a die-cast aluminum housing, efficient heat dissipation, and high-efficiency LED technology, it delivers uniform, low-glare illumination with excellent energy efficiency and long service life. Ideal for hotels, villas, offices, retail stores, and other premium residential and commercial interiors.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-DL0XX02

Product Family

Down Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20/54

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

12W,16W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

100°

Luminous output

110lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
