ILL-BH220

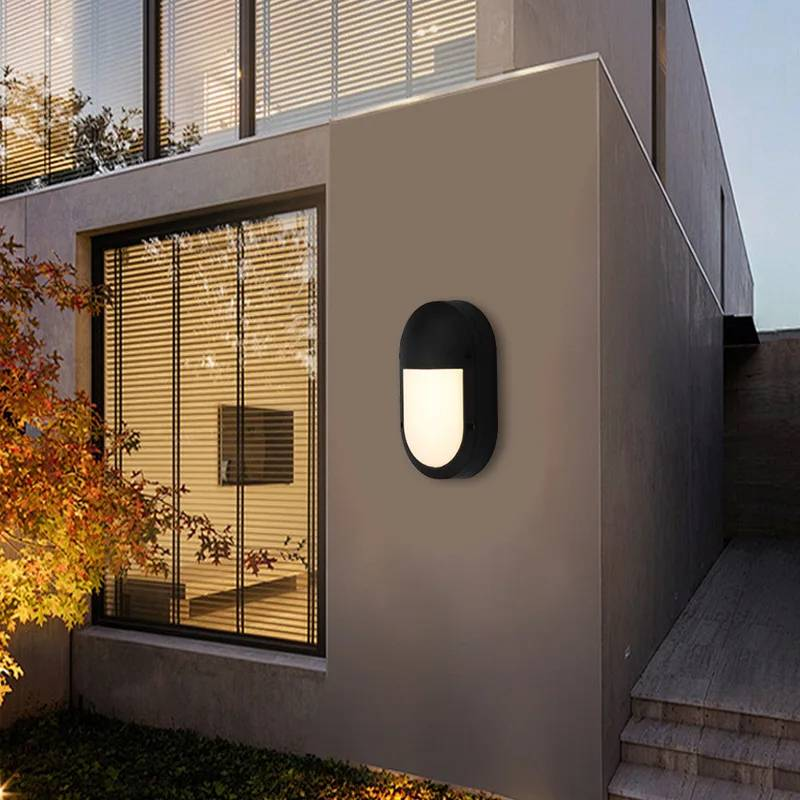

The BHXX220 Series is a robust and versatile LED bulkhead luminaire constructed with a rugged housing and high-transmission diffuser, the fixture delivers consistent, glare-free lighting. Its IP65-rated design offers excellent protection against dust and water ingress, making it ideal for harsh weather and industrial conditions. Bulkhead lights are specifically designed for wall or ceiling mounting in environments where durability and moisture resistance are essential.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

BHXX220 Series

Product Family

Bulkhead Light

Application Area

Indoor

Material and Finish (Body)

Polycarbonate, White

Material and Finish (Reflector)

Not Applicable

IP Level

IP65

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

12W,16W,20W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

100°

Luminous output

135lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
