ILL-DL01

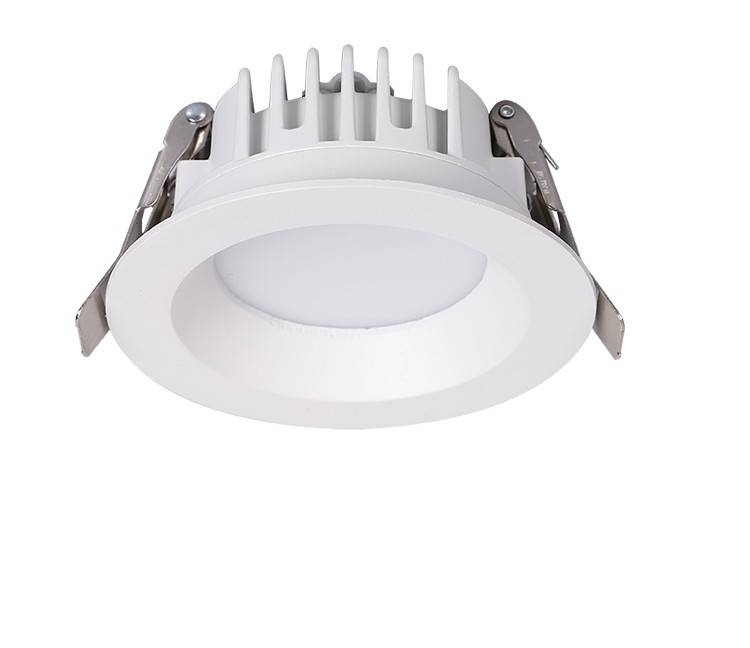

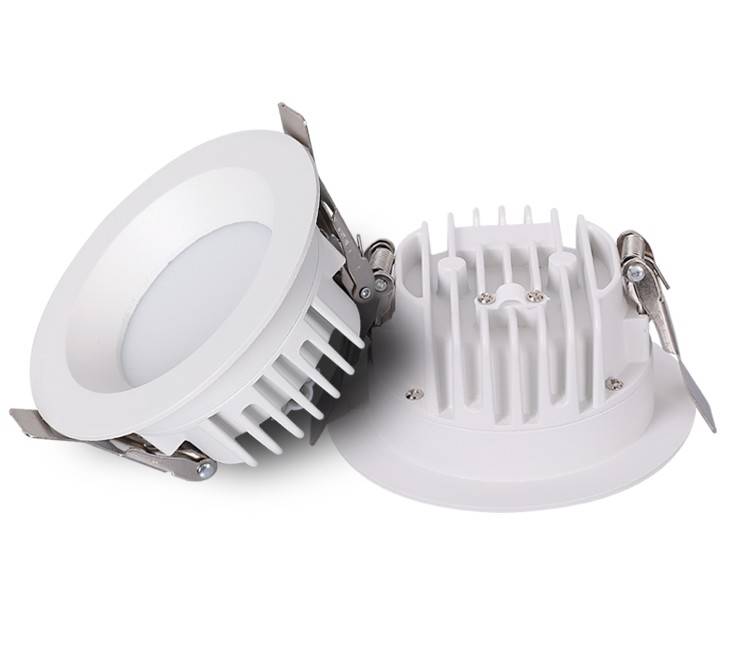

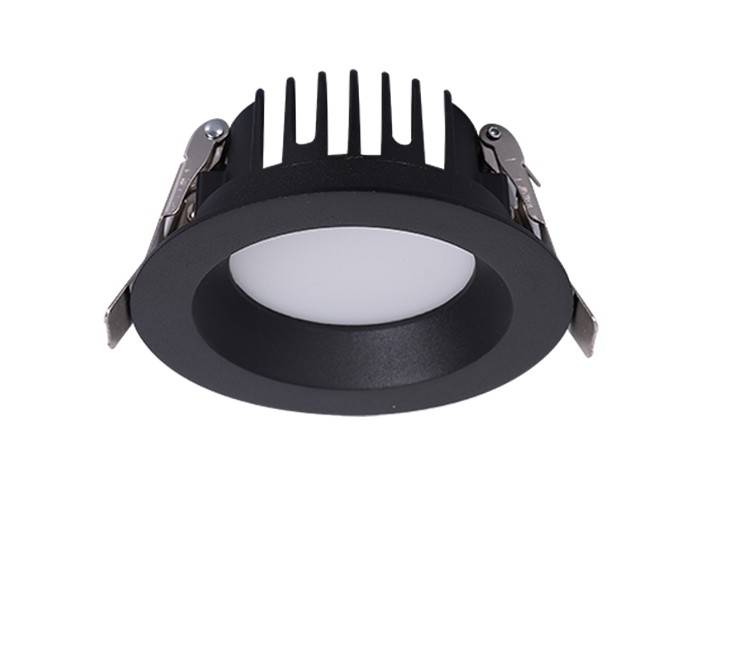

TheILL-DL0XX01 Series is a compact recessed LED downlight designed for efficient and reliable general lighting. Featuring a slim, modern design, high-efficiency LED technology, and an integrated aluminum heat sink for superior thermal performance, it delivers uniform, glare-free illumination with long service life. Available in black and white finishes, it is ideal for residential, hospitality, retail, and commercial interior applications.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-DL0XX01

Product Family

Down Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20/54

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

8W,12W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

100°

Luminous output

110lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
