ILL-DL05

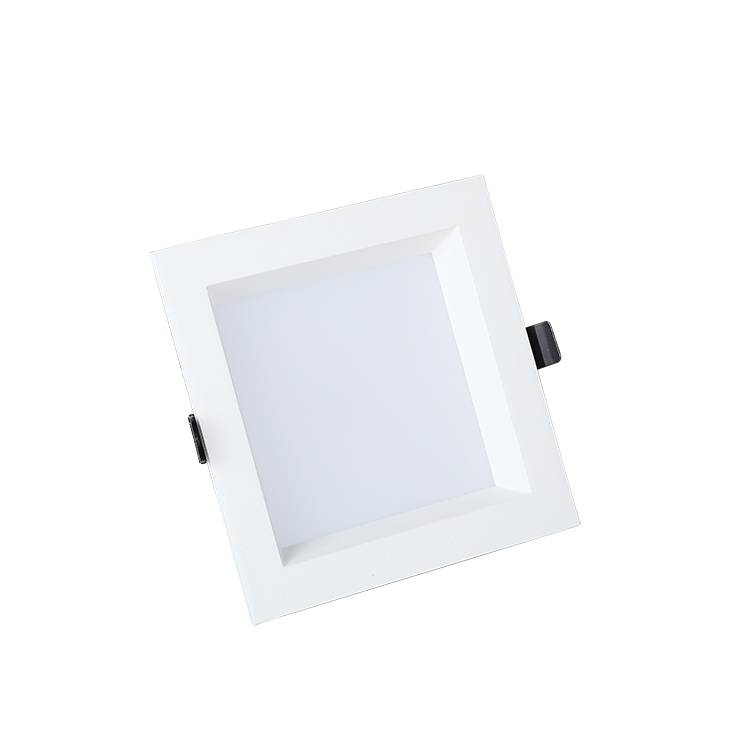

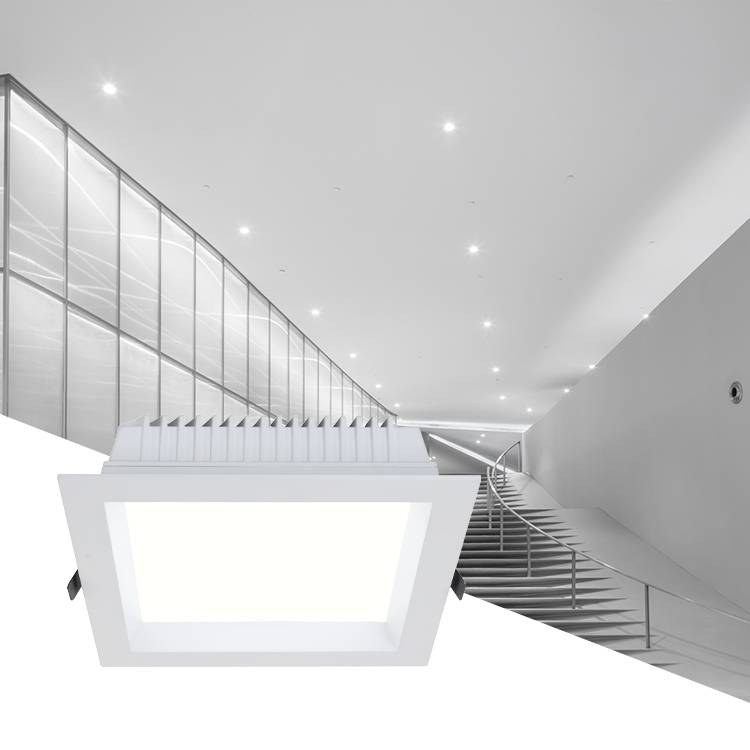

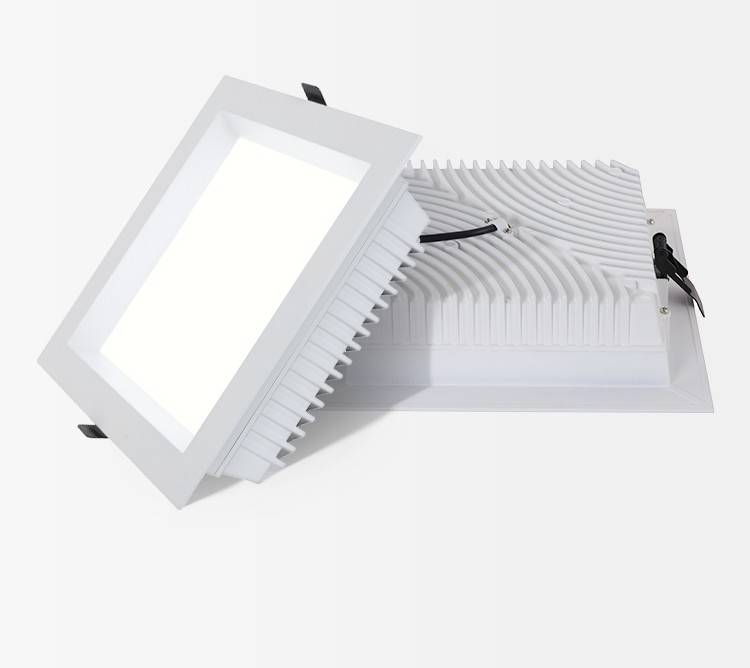

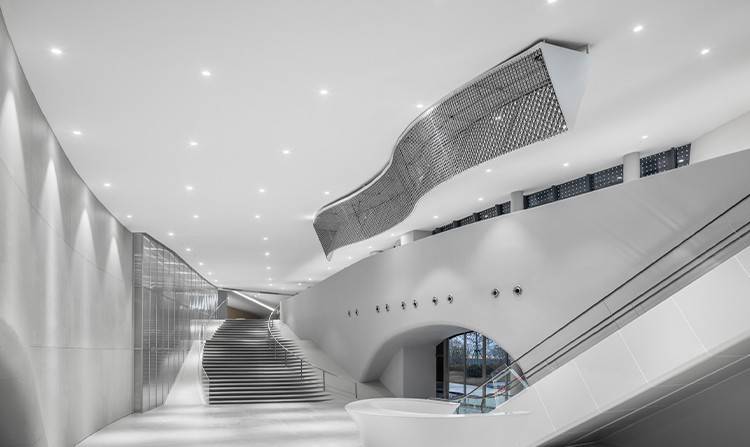

The ILL-DL0XX05 Series is a recessed square LED downlight designed for modern architectural lighting applications. Featuring a minimalist square bezel, deep recessed design, and die-cast aluminum housing with excellent thermal management, it provides uniform, low-glare illumination, high energy efficiency, and long service life. Ideal for hotels, villas, offices, retail stores, shopping malls, and other premium commercial and residential interiors.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-DL0XX05

Product Family

Down Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20/54

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

25W,35W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

100°

Luminous output

110lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
