ILL-L242S-F

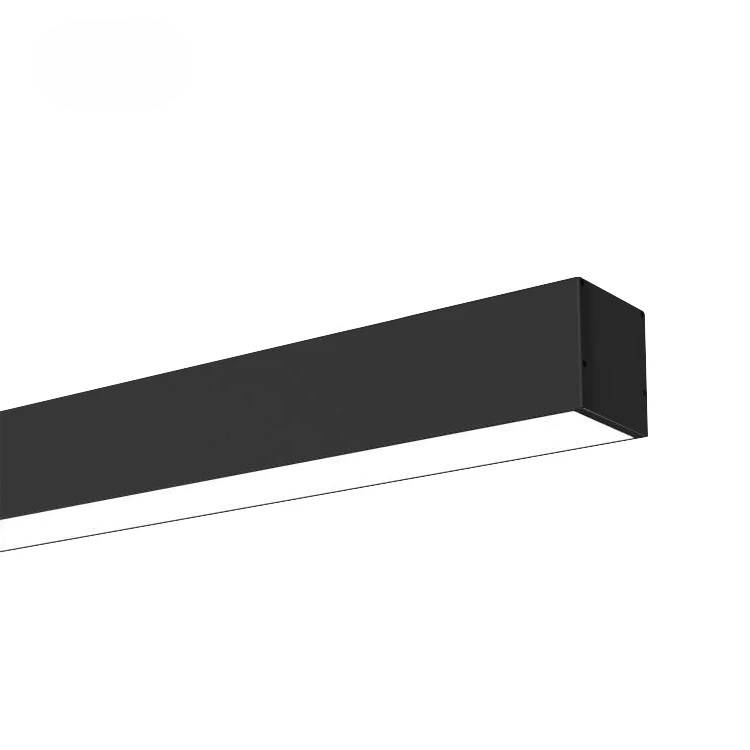

The ILL-L242S-XXXF Linear Light is a sleek and modern lighting solution designed to provide efficient, high-quality illumination for both residential and commercial environments. Engineered for versatility, this linear light fixture is perfect for applications requiring continuous, even lighting with a minimalistic design. Its precision-engineered LED technology ensures long-lasting performance, energy efficiency, and consistent light output.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-L242S-XXXF Series

Product Family

Linear Light

Application Area

Indoor

Material and Finish (Body)

Extruded Aluminium , White, Black

Material and Finish (Reflector)

Not Applicable

IP Level

IP20

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

12W,20W,36W,48W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

120°

Luminous output

100lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
