ILL-BH-LU35

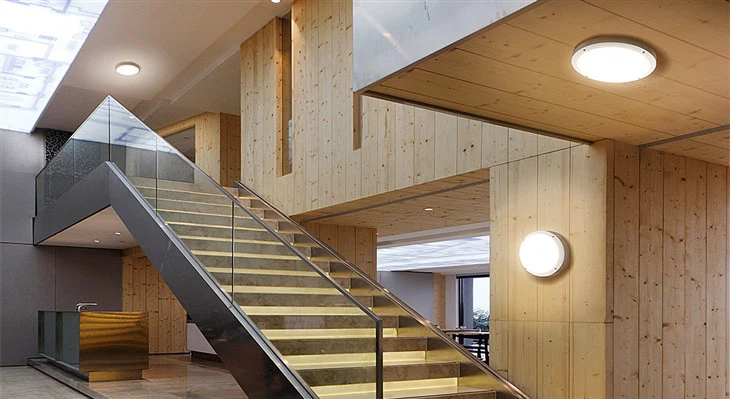

TheILL-BH-LU35XX Series A stylish, surface-mounted LED bulkhead luminaire with a durable die-cast housing and opal diffuser, designed to deliver uniform, glare-free illumination. Ideal for residential, commercial, and hospitality applications, including corridors, stairwells, entrances, walkways, and outdoor covered areas, offering reliable performance, energy efficiency, and long service life.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-BH-LU35XX Series

Product Family

Bulkhead Light

Application Area

Indoor

Material and Finish (Body)

Die -Cast Aluminum, Black,White

Material and Finish (Reflector)

Not Applicable

IP Level

IP65

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

20W,30W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

120°

Luminous output

100lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65

All

ILL-BH-LU35
