ILL-BHMOD320

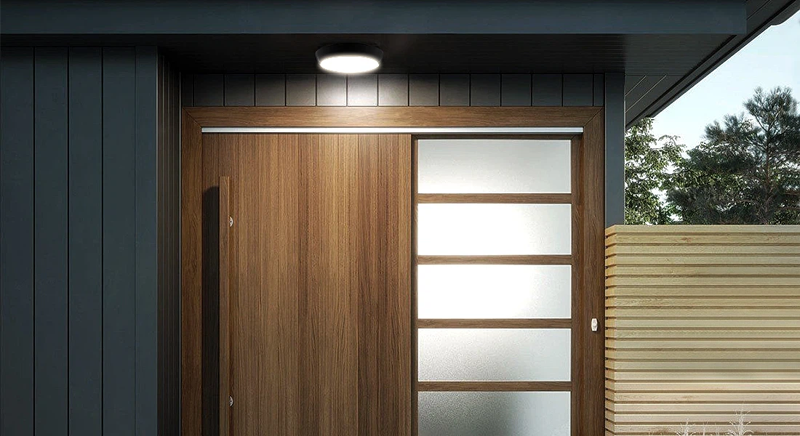

The ILL-BHMOD320 Series A robust, surface-mounted LED bulkhead luminaire with a modern circular design, providing high-efficiency, uniform illumination. Designed for residential, commercial, and industrial applications, it is ideal for corridors, stairwells, parking areas, utility rooms, and outdoor covered spaces, offering long life, low maintenance, and reliable performance.

Key Features

Energy Efficient

Long Lifespan

Eco-Friendly

Low Heat Emission

Multiple CCT Options

Eye Comfort

Low Maintenance

Premium Quality

Instant ON

Easy Installation

Specifications

Model No.

ILL-BHMOD320 Series

Product Family

Bulkhead Light

Application Area

Indoor

Material and Finish (Body)

Polycarbonite, Black,White

Material and Finish (Reflector)

Not Applicable

IP Level

IP65

Working Temperature

-20°C~50°C

Working Hours

50000 Hrs

Input voltage

120-270 VAC, 50/60 Hz

Power

12W,16W,20W

Power factor

>0.9

Control Type

On/Off, Dimmable

Light Source

LED

Colour Temperature (CCT)

2700K,3000K,4000K,6500K

Colour Rendering Index (CRI)

>80,>90

Unified Glare Rating (UGR)

<22

Beam Angle

120°

Luminous output

100lm/W (±5%)

IK Rating

IK6

ILL-BH-LU-3520-20W-40-110D-65-ND : 20W, 2000lm, Ø300*H90,110°,IK10,120-270 VAC, 50/60 Hz,IP65
